Retaining Wall Drainage Behind the Wall

Practical planning guide

What visible context should be recorded behind a retaining wall?

Intended reader: This guide is for homeowners, property managers, strata councils, and construction coordinators gathering observations near a retaining wall. The goal is to describe visible context and decide whether a qualified specialist assessment may be needed. It does not diagnose movement, design drainage, determine structural capacity, or provide engineering advice.

Begin with the wall and its surroundings

Take wide photographs from both sides of the wall and from each approach. Show the wall’s relationship to buildings, paths, driveways, patios, stairs, fences, planting areas, slopes, and neighbouring property. Add medium images that show the full length and close images that capture cracks, displaced units, leaning, open joints, staining, erosion, exposed material, or changes at the top and bottom. Use a consistent orientation and note the date and weather condition.

Record water observations without naming a cause

Note where water, dampness, mud, staining, or fine material is visible, and whether the observation followed rain, snowmelt, irrigation, or another known event. Identify gutters, downspouts, surface drains, grates, swales, paved edges, and areas where runoff appears to travel. Photograph outlets, weep openings, exposed drainage stone, or blocked-looking features only from a safe position. Use “water was observed at the base” rather than “the wall drainage failed” when the cause is unknown.

Describe changes over time carefully

If the wall has been photographed before, organize images by date and keep the same viewpoints where possible. Note what looks different: a wider visible gap, a new crack, a changed grade, a shifted cap, or new erosion. Do not infer a rate of movement from casual photographs. Record who made the observation and what conditions were present. If no prior record exists, say that the history is unknown. A clear unknown is more useful than an unsupported conclusion.

Map the access and connected work

Measure or estimate the distance between the wall and nearby access routes, buildings, fences, utilities, parking areas, and property boundaries when it can be done safely. Note narrow gates, stairs, overhead conflicts, shared access, staging limits, and surfaces that may need protection. List connected topics separately: retaining walls, drainage and site prep, excavation, grading, paving stones, concrete flatwork, patios, or walkways. This helps distinguish a wall observation from a broader property scope.

When another specialist may be needed

Consider a qualified specialist assessment when there is visible movement, a leaning section, significant separation, sudden erosion, damage near a building or utility, uncertainty about property boundaries, or a question about structural adequacy. A contractor conversation may help organize surface and access context, but it should not replace the specialist appropriate to the concern. If there is an immediate safety concern, follow the property’s safety process and seek suitable professional direction.

Neutral planning prompts

• What is visible from a safe location, and what is only suspected?
• Which observations are new, recurring, or impossible to date?
• Where does water appear, and what weather or activity preceded the observation?
• Which access routes, surfaces, or neighbouring features connect to the area?
• Does the question concern appearance, drainage context, access, or structural adequacy?
• Who has authority to discuss the property and coordinate any specialist input?

How to organize a request

Prepare a one-page summary with a simple sketch, dated photographs, approximate dimensions, visible observations, access notes, and open questions. Keep wall concerns separate from desired finishes or landscaping ideas. Link each image to a note and avoid private documents. This context can support a discussion of Retaining Walls, Drainage & Site Prep, or Excavation.

Education boundary and adjacent guide

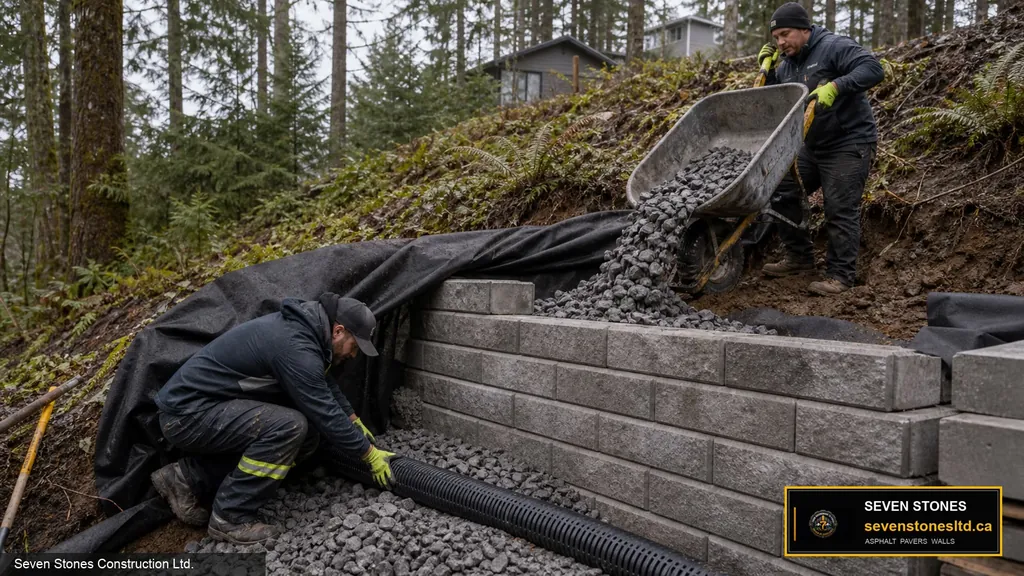

This guide is educational context only. It does not diagnose conditions, design a drainage system, prescribe materials, or provide engineering, legal, or safety advice. Illustrations are educational context only, not evidence of completed Seven Stones customer work. For connected ground-work questions, read Excavation and Grading Before Construction. Share only verifiable context through the contact page.

Keep a boundary note with the record. Identify whether the wall appears to sit beside a shared path, property line, building edge, or neighbouring feature, and state when that relationship has not been confirmed. This simple distinction can prevent a surface conversation from being treated as permission to alter another area.
