Parking Lot Maintenance and Line Painting

Practical planning guide

How should a lot condition be documented before maintenance is discussed?

Intended reader: This guide is for property managers, strata councils, building managers, and small commercial property teams preparing a parking-lot conversation. The useful goal is a shared description of the visible condition, how people move through the lot, and which decisions remain open. Clear notes help separate routine maintenance questions from broader paving, drainage, or access questions without assuming a remedy.

Start with a simple site record

Write the property name or internal reference, the date of observation, and the person who made the notes. Sketch the lot or mark up an existing plan. Label entrances, exits, pedestrian paths, accessible stalls, loading areas, waste areas, curbs, catch basins, gates, and any neighbouring surface that connects to the lot. A simple orientation arrow helps another person understand the photographs. Keep the record factual: say “standing water observed near the east entrance after rain,” rather than naming a cause.

Photograph the condition in layers

Take a wide image from each approach so the relationship between the lot, building, driveway, and walkway is visible. Follow with medium images that show the full patch, crack pattern, faded marking, edge, or ponding area. Finish with close images that show texture and boundaries without people, licence plates, or private documents. Keep a consistent direction and, where useful, place a disposable scale reference beside a surface feature. Note whether each image was taken in dry, wet, shaded, or winter conditions.

Describe surfaces without jumping to a fix

Use neutral terms such as crack, depression, loose edge, ravelled surface, faded line, damaged curb, blocked-looking drain, or uneven transition. Record approximate length and width when it can be measured safely, and state when a dimension is an estimate. Identify whether the feature is in a travel lane, stall, pedestrian path, turning area, or edge. Avoid concluding that a feature is structural, unsafe, or caused by drainage from a photograph. Those conclusions need appropriate site knowledge.

Map movement and operating constraints

Maintenance scope depends on how the property uses its space. Note one-way or two-way circulation, delivery movements, visitor parking, accessible routes, school or business peaks, gate controls, and areas that cannot be blocked. Record whether vehicles can be redirected and who can approve temporary changes. For a shared property, identify resident notice needs and the contact responsible for common areas. For a commercial property, note customer access, loading, tenant coordination, and any relationship between lot work and building entrances.

Separate markings from surface work

Line painting is easier to discuss when the current layout and surface condition are documented separately. Photograph stall lines, arrows, accessible symbols, curbs, crosswalks, loading markings, and signs. Note which markings are missing, faded, confusing, or no longer match the current use. Then create a separate list of cracks, patches, potholes, edges, drainage observations, and areas where a surface transition is visible. This prevents a marking request from silently becoming an assumed paving scope.

Coordinate a focused maintenance conversation

Share the sketch, photograph index, surface list, marking list, access notes, and questions in one folder or message. Ask which items should be considered together, which areas require another trade or specialist, and what approvals or notices are needed before a scope can be discussed. If a feature changes after rain or winter conditions, record the observation and date rather than predicting how it will behave. Keep unknowns visible so everyone knows what still needs confirmation.

Neutral planning prompts

• Which visible items are priorities for the property team, and why?
• Which routes, stalls, entrances, or loading areas must remain usable?
• Are the current markings still consistent with the way the lot is used?
• What surface, drainage, access, or property-rule questions cannot be answered from photos?
• Who can approve a scope, communicate with occupants, and confirm site access?

Education boundary and next links

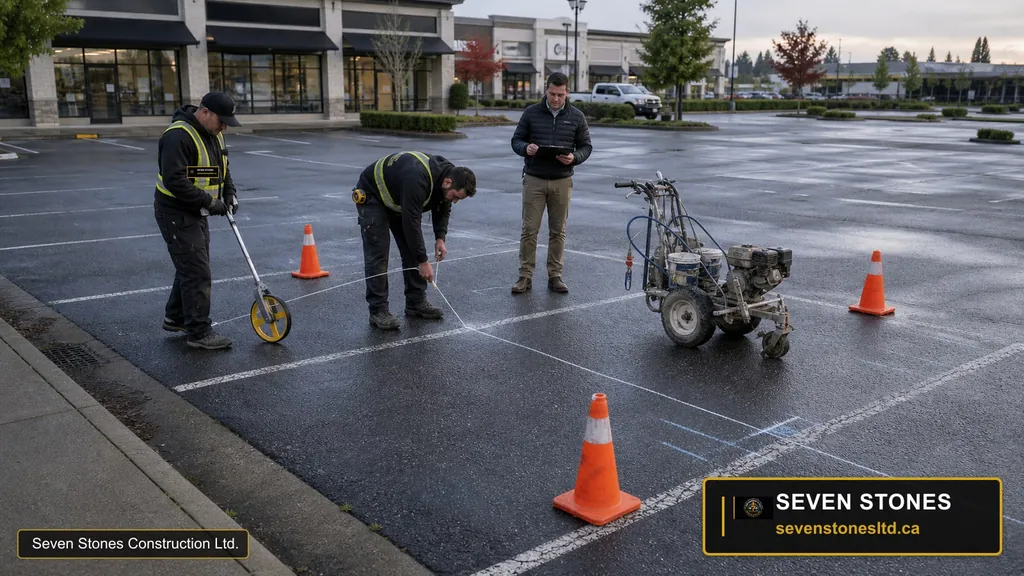

This guide is for organizing observations, not for diagnosing pavement, prescribing materials, defining traffic control, or confirming compliance. Illustrations are educational context only, not evidence of completed Seven Stones customer work. For a related service page, see Parking Lots. For the information that helps frame a small-lot request, see the adjacent Small Commercial Parking Lot Quote Checklist. Share only the context you are comfortable discussing through the contact page.
